Tuffdisc Pumps


Tuffdisc Pump


Engineered for Purity. Built for Performance


When your process demands gentle handling, absolute hygiene, and uncompromising reliability, ordinary pumps simply won't do.The TUFFDISC ® Sanitary Design Disc Pump brings disc pump technology to food, dairy, beverage, and pharmaceutical industries — combining the shear-sensitive, low-pulsation transfer that disc pumps are known for with sanitary construction built to meet the strictest hygiene standards.


Whether you're moving delicate yogurt cultures, viscous fruit concentrates, shear-sensitive biological fluids, or high-purity pharmaceutical suspensions, TUFFDISC® delivers consistent, contamination-free performance — batch after batch, shift after shift.


How It Works

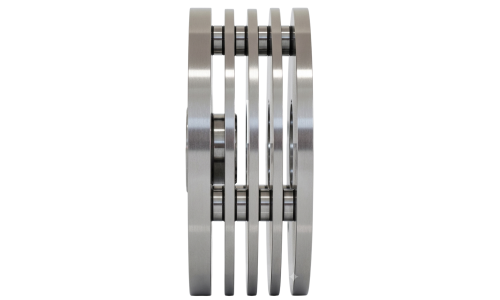

Unlike conventional centrifugal or positive displacement pumps that rely on close tolerances, blades, or lobes to move fluid, the TUFFDISC® pump uses a set of rotating discs to create a boundary layer effect. Fluid is dragged along by viscous drag and centrifugal force between the discs, rather than being mechanically sheared or squeezed. The result is a pumping action that is inherently gentle on the product, yet powerful enough to handle high viscosities, fragile solids, and entrained air — all without the wear, clogging, or product degradation common to conventional designs.


Key Features


  • Open, Bladeless Disc Design — No impeller vanes, cutting edges, or close clearances that can damage product or trap contaminants.
  • Sanitary 3-A / CIP-Compliant Construction — Crevice-free wetted surfaces, sanitary fittings, and smooth internal geometry designed for effective Clean-in-Place (CIP) and Sterilize-in-Place (SIP) protocols.
  • Premium Stainless-Steel Build — Constructed from SS 316L/316 wetted parts with mirror or matte sanitary finish options (up to Ra ≤0.4 µm on product-contact surfaces).
  • Improves Operator Safety — Eliminates manual tilting and lifting of heavy drums, reducing spill and injury risk.
  • Non-Clog, Large Free Passage — Handles soft solids, fruit pieces, curds, and fibrous material without blockage.
  • Low Shear, Low Pulsation Flow — Preserves product integrity — critical for live cultures, proteins, emulsions, and shear-sensitive APIs.
  • Wide Viscosity Range — Efficiently handles fluids from water-thin to highly viscous pastes within the same pump body.
  • Minimal Maintenance Design — Fewer wear parts than lobe or gear pumps means lower spare-part costs and longer service intervals.
  • Seal Options to Suit the Application — Single/double mechanical seals, flushed seals, or aseptic seal arrangements available.

Challenge with Conventional Pumps The TUFFDISC Advantage
Product damage from shear (broken curds, sheared cultures, denatured proteins) Gentle disc-drag action preserves product structure and viability.
Frequent clogging with solids or fibrous material Open flow path handles particulates without jamming.
High maintenance due to close-tolerance wear
parts 		Non-contact disc design dramatically reduces wear.
Foaming and air-handling issues Naturally handles entrained air without vapor lock.
Poor hygiene due to crevices and dead zones Fully sanitary geometry supports validated CIP/SIP cycles.
Pulsating flow affecting downstream processes Smooth, near-pulsation-free discharge for consistent dosing and filling.


Applications


Food & Beverage Industry


  • Dairy: milk, cream, yogurt, cultured products, curds and whey.
  • Fruit & vegetable processing: purees, concentrates, pulp with fruit pieces
  • Brewing & beverage: yeast slurries, wort, syrups, carbonated products
  • Confectionery: chocolate, fondant, sauces, and viscous fillings.
  • Meat & seafood processing: brines, emulsions, and slurries

Pharmaceutical & Biotech Industry


  • Transfer of shear-sensitive biologics, vaccines, and cell suspensions.
  • Handling of high-viscosity syrups, gels, and suspensions
  • API (Active Pharmaceutical Ingredient) slurry transfer
  • Sterile and aseptic fluid transfer in validated environments.
  • Waste activated sludge and fermentation broth handling in bioprocessing

Why Choose TUFFDISC?


TUFFDISC® Sanitary Design Disc Pumps are built to deliver equivalent performance to internationally recognized disc pump technology, at construction quality and service support tailored for Indian and global process industries. Every pump is manufactured under strict quality control, tested for performance, and backed by:


  • Customized sizing and material selection for your specific process fluid.
  • Fast-moving spares and after-sales technical support
  • Documentation support for validation, IQ/OQ, and 3-A compliance
  • Competitive pricing without compromising sanitary integrity.

TUFFDISC — Where Hygiene Meets Reliability.


For technical datasheets, model selection, or a customized quotation for your application, contact our engineering team today.


More information is available in Shear Blenders/Shear Pumps pdf which can be download as free pdf.
